High-precision locknuts
AS 65x2

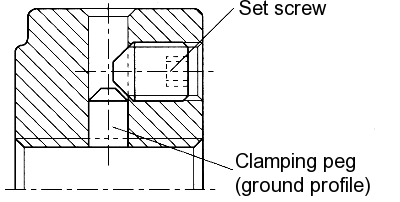

Type AS - Axial locking system
Thread and supporting surfaces ground in one operation
Axial runout accuracy 0.002
Technical Specification
Type
ground
Locking system
axial set screw
Axial runout accuracy
0.002 mm
Thread d1 4H
M65x2
3D-Data available
Order description
AS 65x2
d2
85 mm
h
21 mm
d3
78 mm
b
7 mm
t
3 mm
d4
75
d5
5
c
13 mm
m
M6
Weight g/part
410
Material
Steel Rm 800 - 950 N/mm²Body black finishedBare and lubricated thread and bearing surface
