Sealing Plugs for operating pressure up to 60 bar
LP 900-080
LP series
The low pressure-sealing plug is installed by pressing the plug into a tapered hole. The surface hardened, but flexible plug achieves anchorage by gripping with the hole wall.

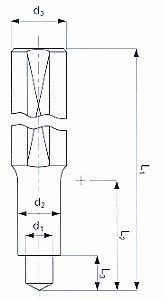

Technical Specification
d4
+0,1
-0.3
8 mm
3D-Data available
Order description
LP 900-080
d1
8.45 mm
d2
7.7 mm
l1
7 mm
Min. d3
8.60 mm
Min. l2
9.5 mm
Sleeve material
Free cutting steel, nitrocarburized, lubricated
Packaging unit
100/250
LP 900 080_en
