Self-clinching flush head studs
FH4-M6-15
Type FH4 stainless steel AISI 400
Typ FHP stainless steel A 286
Flush head studs for through-holes not requiring additional deburring or welding. Available in different lengths. Specially suitable for VA sheets and other sheet metals.

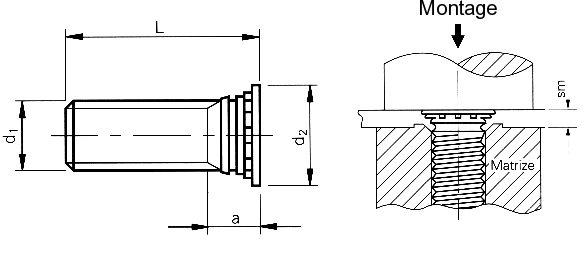

Technical Specification
Thread d1
M6
Min. sm
1.6 mm
L ±0.4
15 mm
Hole-Ø in the sheet
+0.08
0
6.0 mm
Material
Passivated stainless steel AISI 400.
3D-Data available
Order description
FH4-M6-15
d2 ±0.4
8.2 mm
Max. a
3.0 mm
Min. edge distance up to the hole centre
7.9 mm
Use
Special studs for installing in stainless steel and other sheet metals for sheet hardnesses up to HRB 92.
Tools
Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector
FH4 M6 15_en
