Self-locking nuts
PLC-M4
Type PL (carbon steel)
Type PLC (stainless steel)
Self-locking nuts with a polyamide retaining ring. Retaining effect is ensured even after loosening the screw repeatedly.
Technical Specification

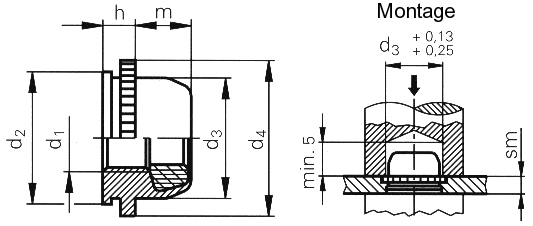

Thread d1
M4
Min. sm
1.5 - 1.8 mm
Hole-Ø in the sheet
+0.08
0
7.5 mm
Material
Passivated grade 18/8 stainless steel (AISI 300).
Use
For sheet hardnesses up to HRB 70.
3D-Data available
Application
Self-locking effect due to a nylon ring. Temperature resistant up to + 120 °C.
Order description
PLC-M4
Max. d2
7.48 mm
Max. d3
7.01 mm
Max. d4
8.54 mm
Max. m
4.20 mm
Max. h
1.52 mm
Min. edge distance up to the hole centre
5.59 mm
Tools
Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector
Further information
PLC M4_en
