FASTEKS FILKO® - blind rivet nuts special small countersunk head / hexagon shank / open
M10-35 HEXTSN ST
Materials:
- Steel
Surface protection: Galvanized with thick coating passivation (RoHS compliant) - Stainless steel A2
- Stainless steel A4
Brass, aluminum, special surface platings on request
Technical Specification
Thread
M10
Grip range K
0.8-3.5 mm
Mounting hole H +0,1
13.0 mm
Material
SteelSurface protection: Galvanized with thick coating passivation (RoHS compliant)
3D-Data available
Order description
M10-35 HEXTSN ST

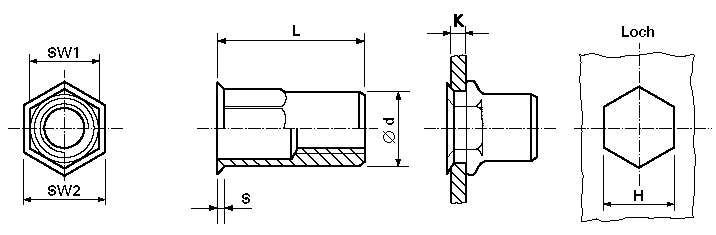

Ø d/SW1
13.0 mm
Ø D/SW2
14.2 mm
S
0.6 mm
L
20.0 mm
M10 35 HEXTSN ST_en
