Sealing Plugs for operating pressure up to 60 bar
LK 600-040
LK series
This plug has been designed for applications in the low pressure range. It has an anchorage principle similar to the SK series plugs.

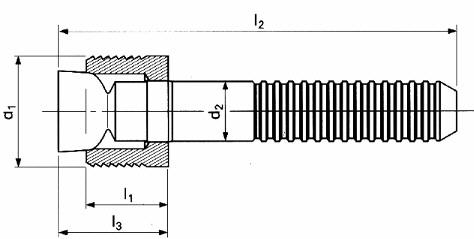

Technical Specification
Max. l4
4.0 mm
Sleeve material
Stainless steel 1.4305
3D-Data available
Order description
LK 600-040
d1
4 mm
l1
3.7 mm
d2
2.20 mm
l2
33 mm
Max. l3
5.5 mm
Bore diameter
+0.12
0
4 mm
Mandrel material
Stainless steel 1.4542
Time of delivery
On request
Packaging unit
100/1000
LK 600 040_en
