Self-clinching nuts for flush installation

F-M3-1

Type F (stainless steel)
Flush self-clinching nuts are especially suitable for aluminium. No protrusions on either surface after installation in round holes. The hexagonal head ensures high torsional strength. Available in different shank lengths.

E-Shop

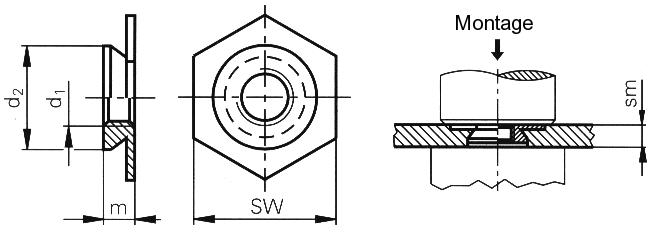

Technical Specification

Thread d1

M3

Hole-Ø in the sheet
+0.08
  0

4.40 mm

Min. sm

1.5 mm

Material

Passivated grade 18/8 stainless steel (AISI 300).

Use

Specially suitable for thin aluminium sheets (up to a sheet hardness of HRB 70). No protrusions on either surface after installation.

3D-Data available

Order description

F-M3-1

Max. d2

4.35 mm

sw

4.8 mm

Max. m

1.53 mm

Min. edge distance up to the hole centre

6.0 mm

Tools

Identify order numbers of PEMSERTER® tools (anvils and punches): Tooling Selector

Insertion machines

Further information

F M3 1_en 51.7 KB
