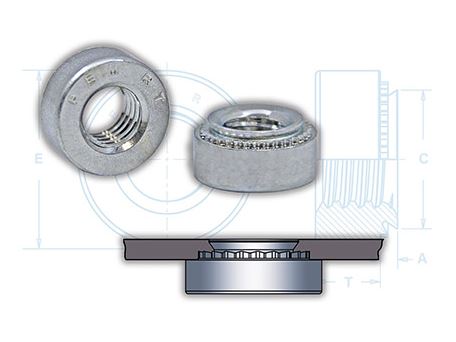

Inside the new type S-RT PEM® self-clinching lock-nuts a specially-optimised thread pitch makes sure of particularly easy screwing processes. The screws can revolve freely in the thread until a specific force is applied. As soon as this is reached, the special geometry of the lock-nut comes into play. The screw is then held firmly over the entire length of the thread – even when exposed to vibration and after being screwed and unscrewed numerous times. Thanks to these properties, the PEM® SR-T is especially suitable for lasting installation in thin aluminium and steel sheet from 0.8 mm thick. The self-clinching lock-nuts are available in sizes from M3 to M6 as well as for a range of different sheet thicknesses.

Advantages

• Screw turns freely until a clamp load is applied
• Resistant to vibrational loosening

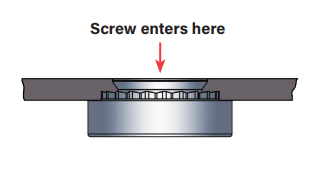

• Back side of panel is flush or sub-flush for screw installation
• Locking feature reusability is not affected by number of on/off cycles
• Uses same mounting hole and installation tooling as standard S^tm nut fasteners found in PEM® Bulletin CL

Installation

Prepare properly sized mounting hole in sheet. Do not perform any secondary operations such as deburring. Place fastener into the anvil hole and place the mounting hole (preferably the punch side) over the shank of the fastener as shown in diagram. With installation punch and anvil surfaces parallel, apply squeezing force until the head of the nut comes into contact with the sheet metal. >> Video   For best results we recommend using a Haeger insertion press for installation of PEM® self-clinching fasteners.  >> Haeger® insertion press
